Mid-Tower PC Computer Case with Sound Dampening Panels W68094
Mid-Tower PC Computer Case with Sound Dampening Panels W68094

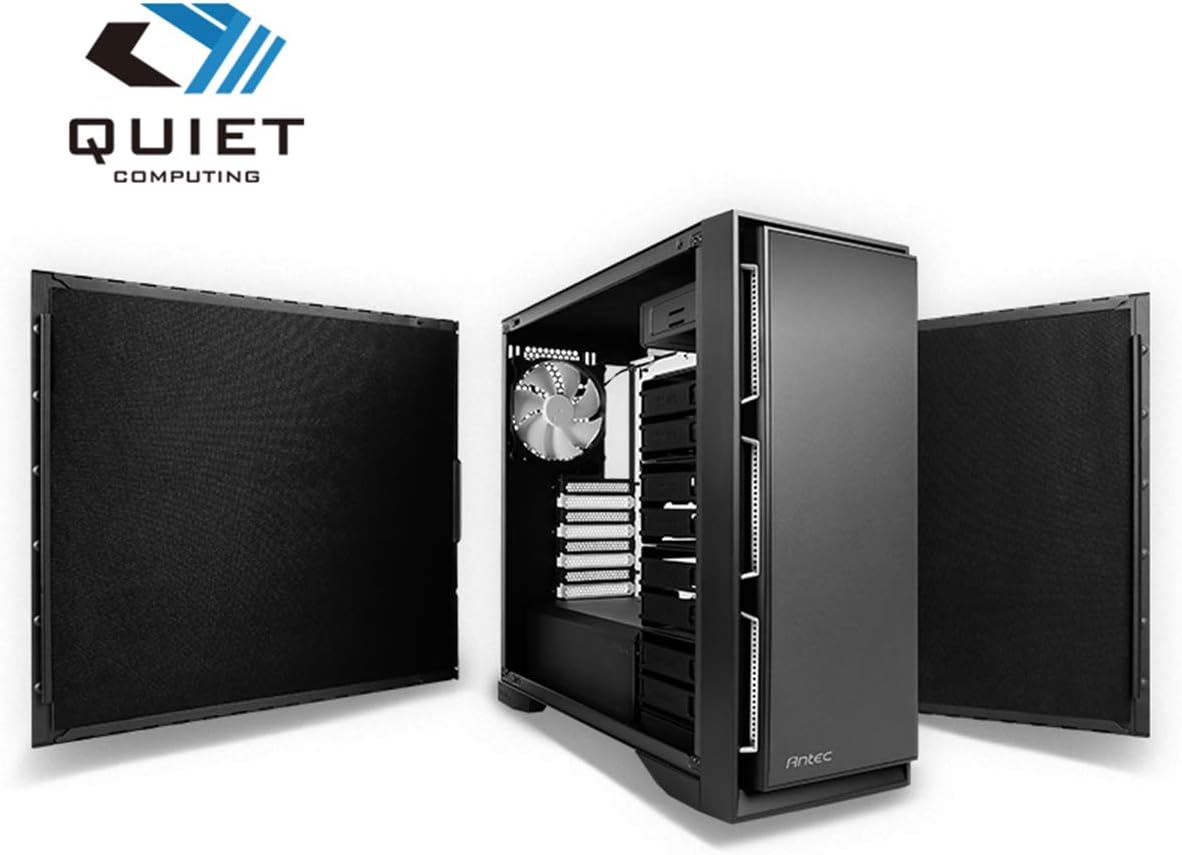

Silent Mid-tower ATX PC case with sound dampening top/front/side panels and quiet computing technology.

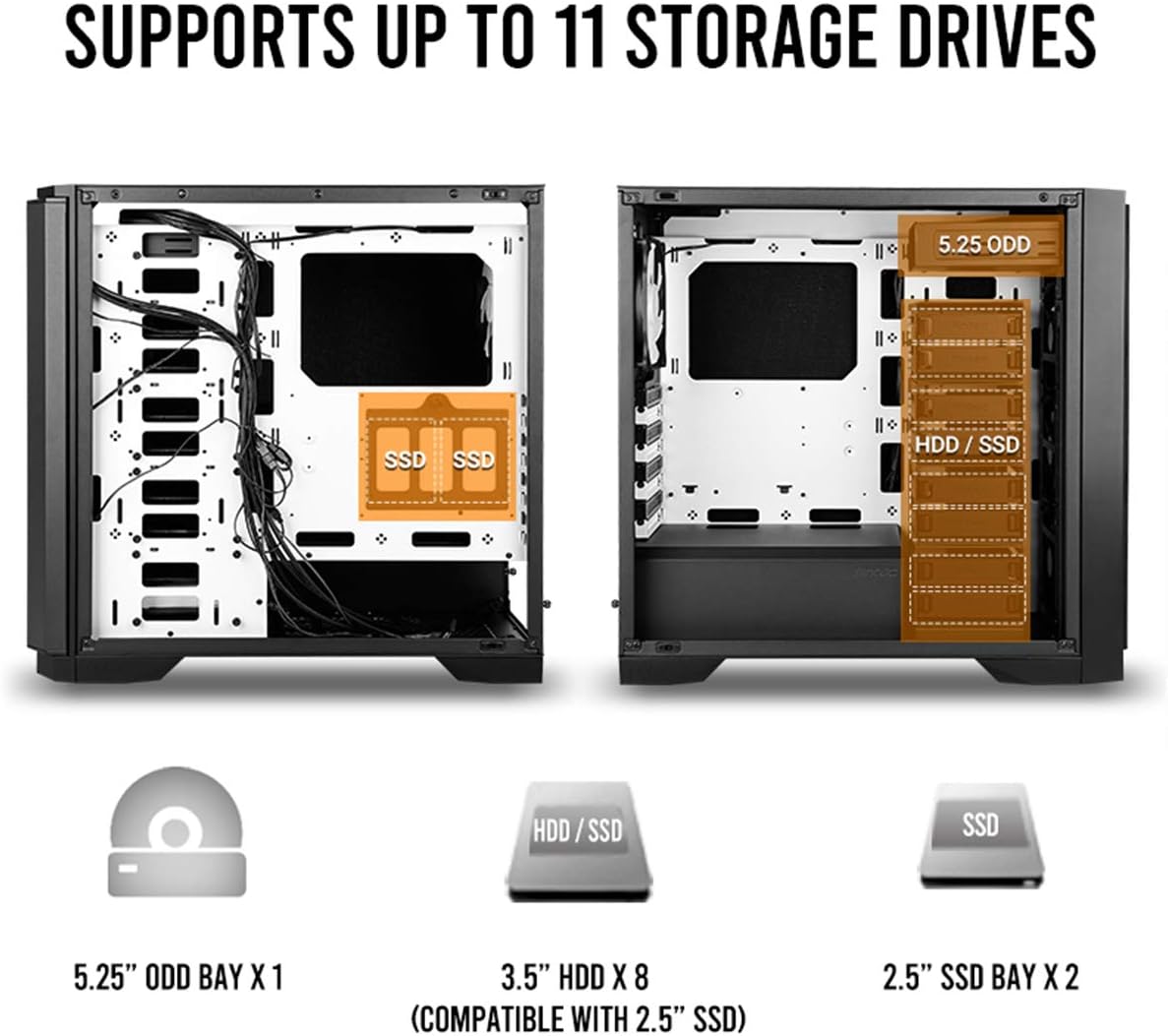

Supports 11 drive bays with 5.25” ODD bay x 1, 3.5” HDD/2.5” SSD x 8 and dedicated 2.5” SSD x 2.

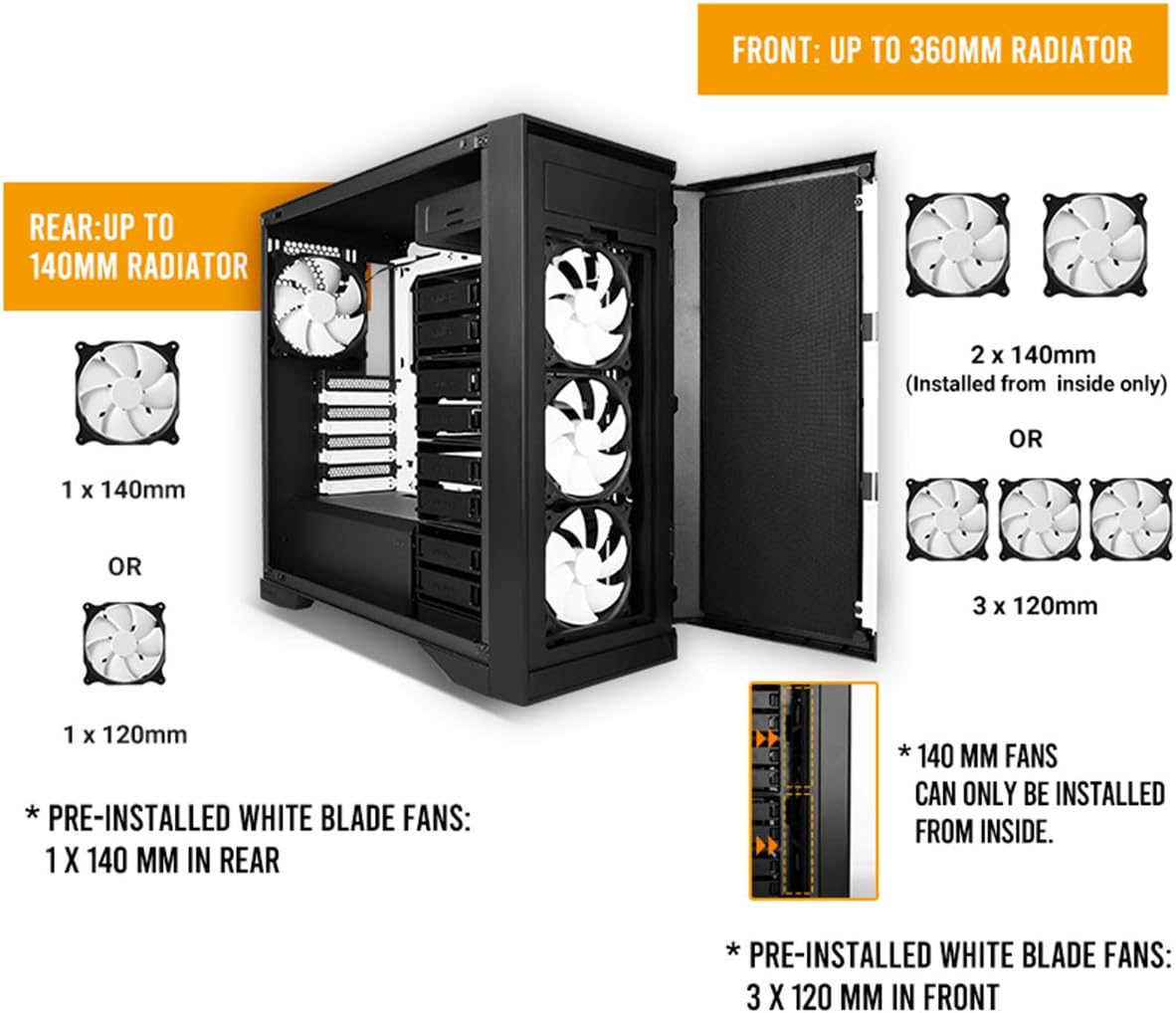

4 x 120/140mm cooling fans pre-installed in front and rear; up to 4 fan mounts with the maximum of 360mm radiator support for better cooling.

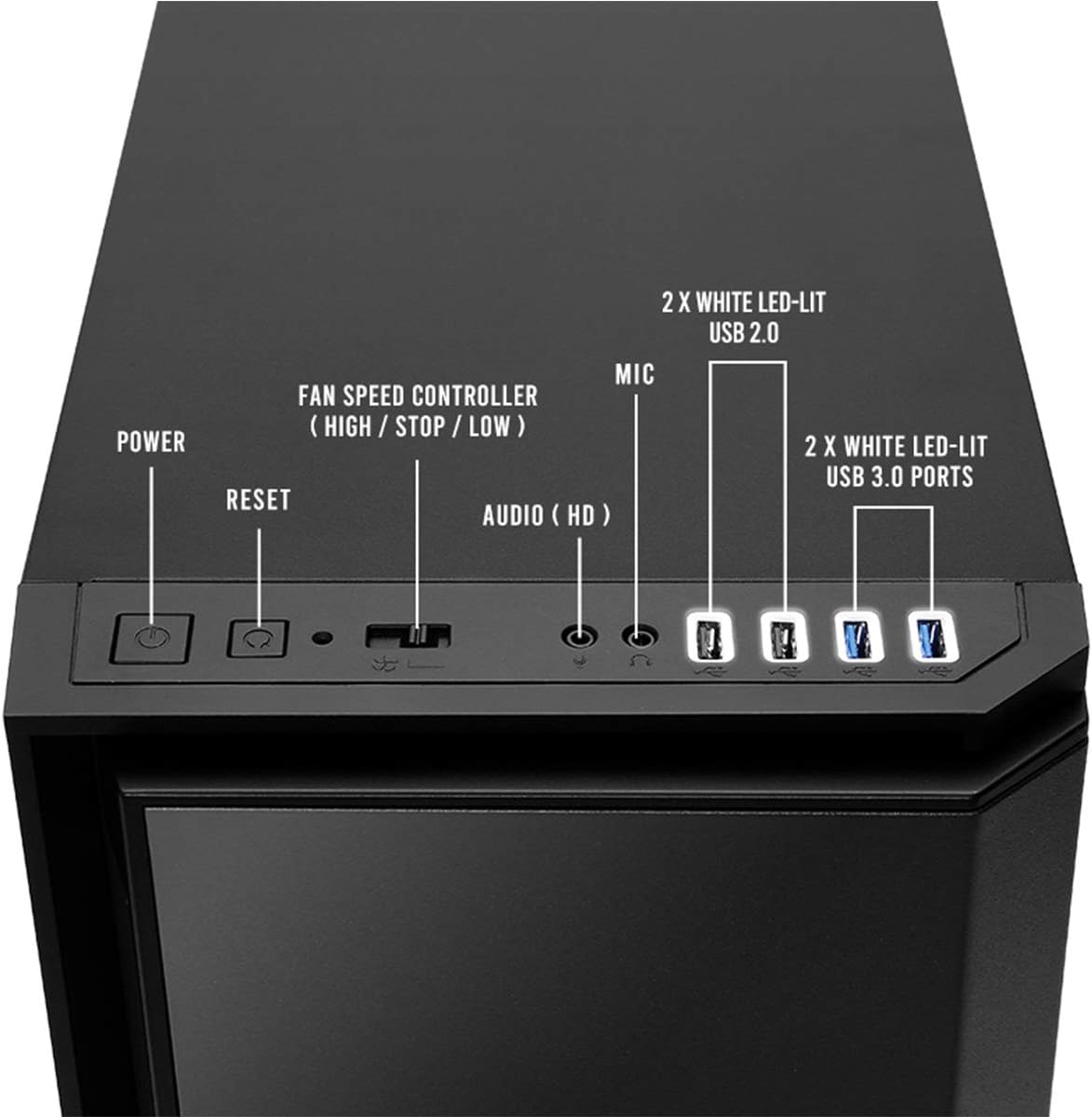

Easy I/O panel with power/reset buttons, fan speed controller, Audio/mic ports, 2 x USB 2.0/2 x USB 3.0 with white LED light.
Supports E-ATX, ATX, Micro-ATX and ITX motherboards with ample routing holes for cables, Max 180mm CPU Cooler height, 450mm graphic card and 290mm PSU length.
Functionality and sleek minimalism blend seamlessly in the P101 Silent, a mid-tower ATX case with a well-crafted exterior and a practical internal configuration. The P101 Silent ATX case is engineered to satisfy both performance and silence seekers while ensuring a great building experience with high-end hardware configurations.
Features and Specifications
* Dimensions: 527x232x506mm (DWH)
* Form Factor: Mid Tower
* Materials: 0.8 mm SPCC + Plastic
* Mainboard Support: E-ATX, ATX,Micro-ATX,ITX
* Front Access & Controls: USB3.0 x 2, USB2.0 x 2, MIC/AUDIO(HD), Power, Reset, Fan Speed * Controller (High/Stop/Low)
* Side Panel: Sound-Dampening Panels
* Expansion Slots: 8
* Drive Bays: 11
* Cooling Support:
- Front: 3 x 120mm or 2 x 140mm(Installed from inside only)
- Rear: 1 x 120mm or 1 x 140mm
- Included Fans: 3 x 120mm in Front & 1 x 140mm fan in rear
* Radiator Support
- Front: ≤ 360mm
- Rear: ≤ 140mm
* Clearance:
- MB Tray Clearance: ≤ 25mm
- Max GPU Length: ≤ 450mm
- Max CPU Cooler Height: ≤ 180mm
- PSU Support: ≤ 290mm
- Dust Filter: Front/Bottom
| P101 Silent | P120 Crystal | P110 Silent | P7 Silent | P5 | |
|---|---|---|---|---|---|
| Side Panel | Sound Dampening Panel | Tempered Glass Panel | Sound Dampening Panel | Sound Dampening Panel | Sound Dampening Panel |
| Dimensions | 20.7' x 9.1' x 19.9' | 18.7' x 9.2' x 19.1' | 19.3' x 9.1' x 20.2' | 17.5' x 8.3' x 18.5' | 18.7' x 7.7' x 15.6' |
| Motherboard Support | E-ATX, ATX, Micro-ATX, ITX | E-ATX, ATX, Micro-ATX, ITX | ATX, Micro-ATX, ITX | ATX, Micro-ATX, ITX | Micro-ATX, ITX |
| Storage | 5.25' x 1 3.5' / 2.5' x 8 2.5' x 2 | 3.5' / 2.5' x 2 / 1 2.5' x 3 | 3.5' x 6 (convertible with 2.5' x 4) 2.5' x 2 | 5.25' x 1 3.5' / 2.5' x 2 2.5' x 2 | 5.25' x 1 3.5' / 2.5' x 2 2.5' x 4 |
| Fan Support | Front: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm / 1 x 140 mm Included Fans: 3 x 120 mm fan in front & 1 x 140 mm fan in rear | Bottom: 3 x 120 mm / 3 x 140 mm M/B Side: Up to 3 x 120 mm or 2 x 140 mm (1 x HDD cage needs to be removed when installing 3 x 120 mm) Rear: 1 x 120 mm / 1 x 140 mm | Front: 3 x 120 mm / 2 x 140 mm Top: 2 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Included Fans: 1 x 120 mm in front & 1 x 120 mm in rear | Front: 2 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Included Fans: 1 x 120 mm fan in front & 1 x 120 mm fan in rear | Front: 2 x 120 mm / 1 x 140 mm Rear: 1 x 120 mm Included Fans: 1 x 140 mm fan in front & 1 x 120 mm fan in rear |
| Radiator Support | Front: up to 360 mm Rear: up to 140 mm | Bottom: up to 360 mm Rear: up to 120 mm M/B Side: Up to 360 mm (All HDD cages needs to be removed when installing 360 mm) | Front: up to 360 mm Top: up to 280 mm Rear: up to 120 mm | Front: up to 280 mm Rear: up to 120 mm | Front: up to 240 mm Rear: up to 120 mm |
| Expansion Slots | 8 | 7 (Horizontal) + 3 (Vertical) | 8 (Horizontal) + 2 (Vertical) | 7 | 7 |
| Max. VGA Length | up to 450 mm (w/ HDD cage) or 270 mm (w/o HDD cage) | up to 450 mm | up to 390 mm | up to 390 mm | up to 360 mm |
| Max. CPU Cooler Height | up to 180 mm | up to 185 mm | up to 165 mm | up to 165 mm | up to 155 mm |
| Max. PSU Length | up to 290 mm | up to 294 mm | up to 200 mm | up to 200 mm | up to 200 mm |
