(No Suggestions): 220V 60Hz single phase, 22A, 4800 watts (rotation motor: 250 watts)
Maximum evaporating flask capacity: 2.6 gallon (10 liters)
Receiving flask 1.3 gallon (5 liter)
Water bath temperature range: ambient to 99°c (210°f)
Unit dimensions: 36 x 22 x 67' (w x d x h) shipping dimensions: 39 x 22 x 44' (evaporator), 30 x 25 x 28' (glassware) (w x d x h)

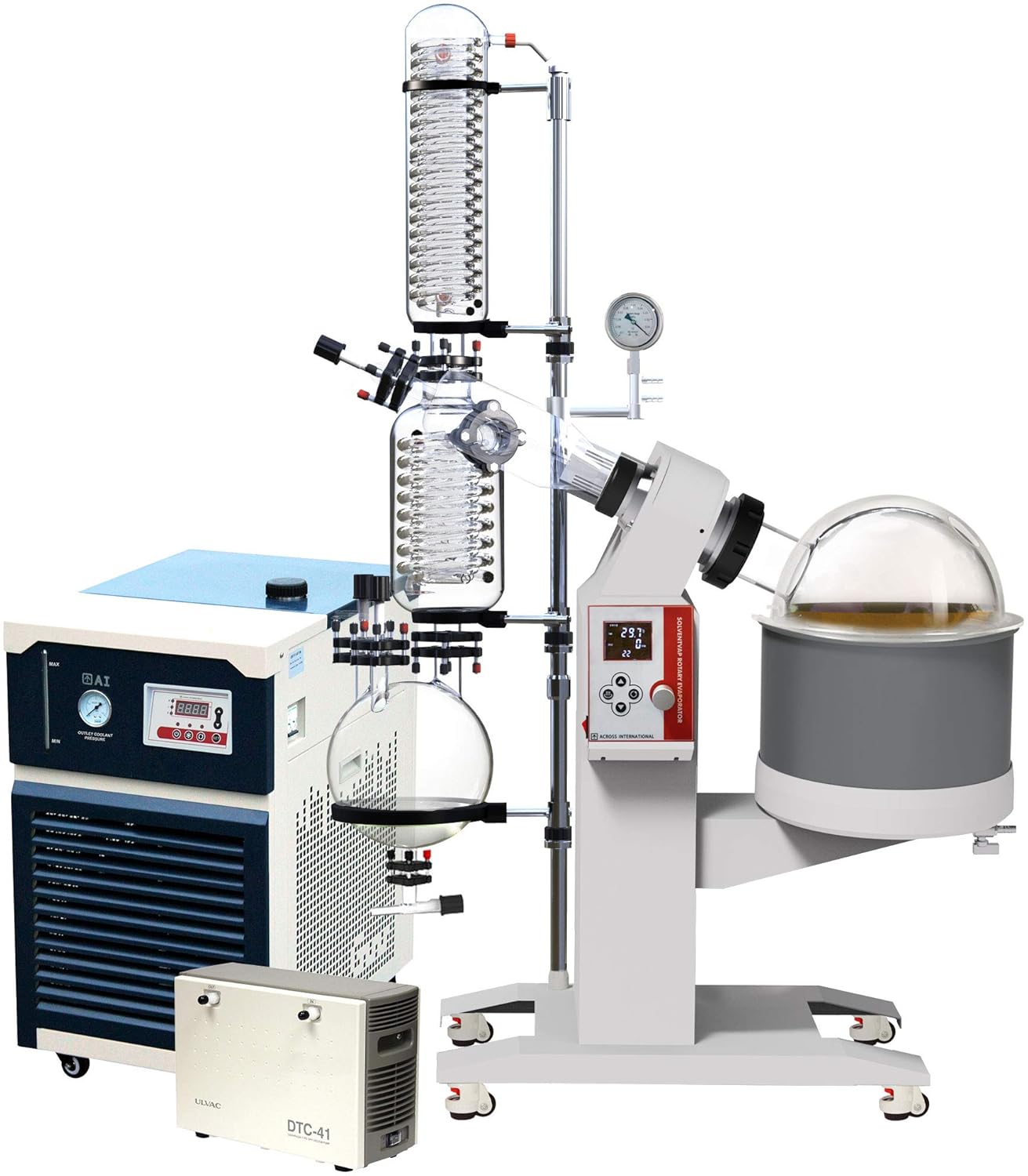

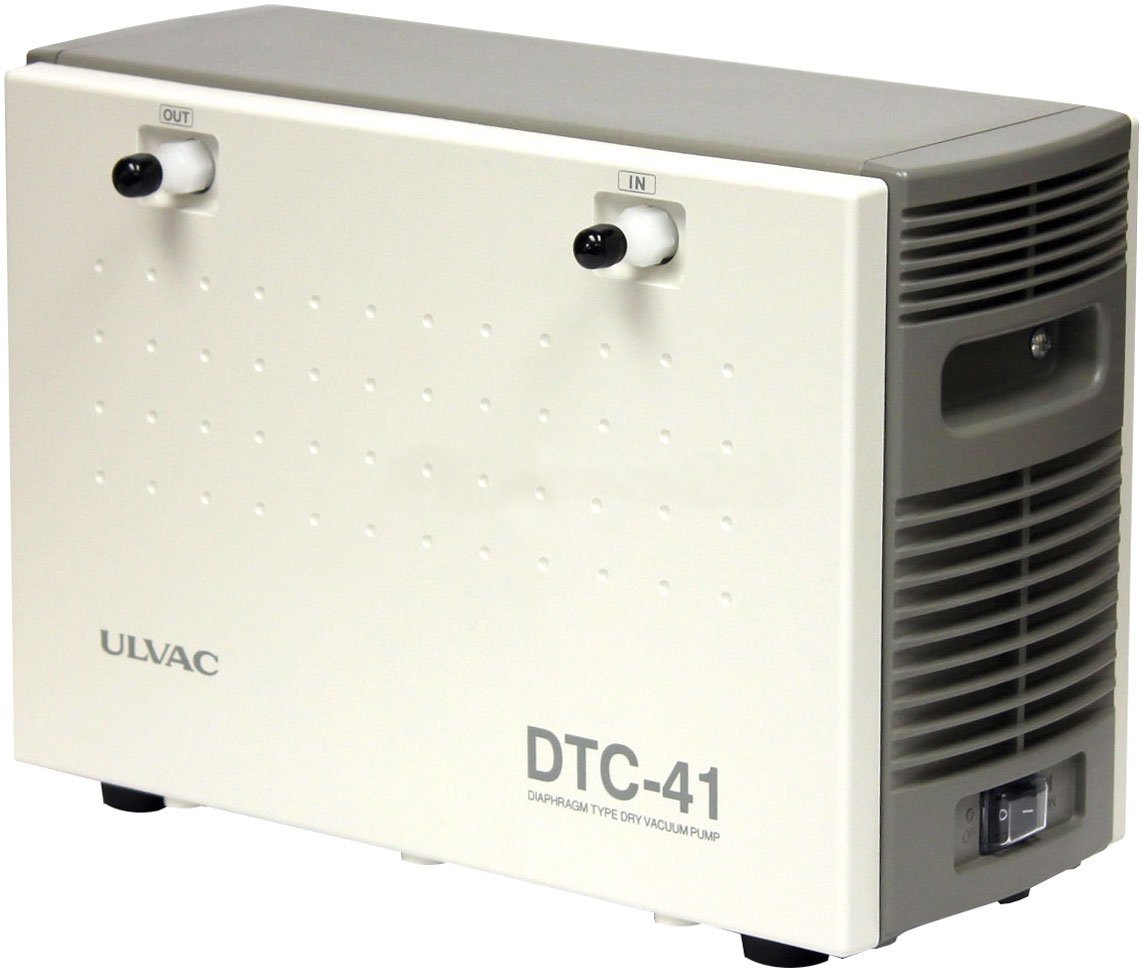

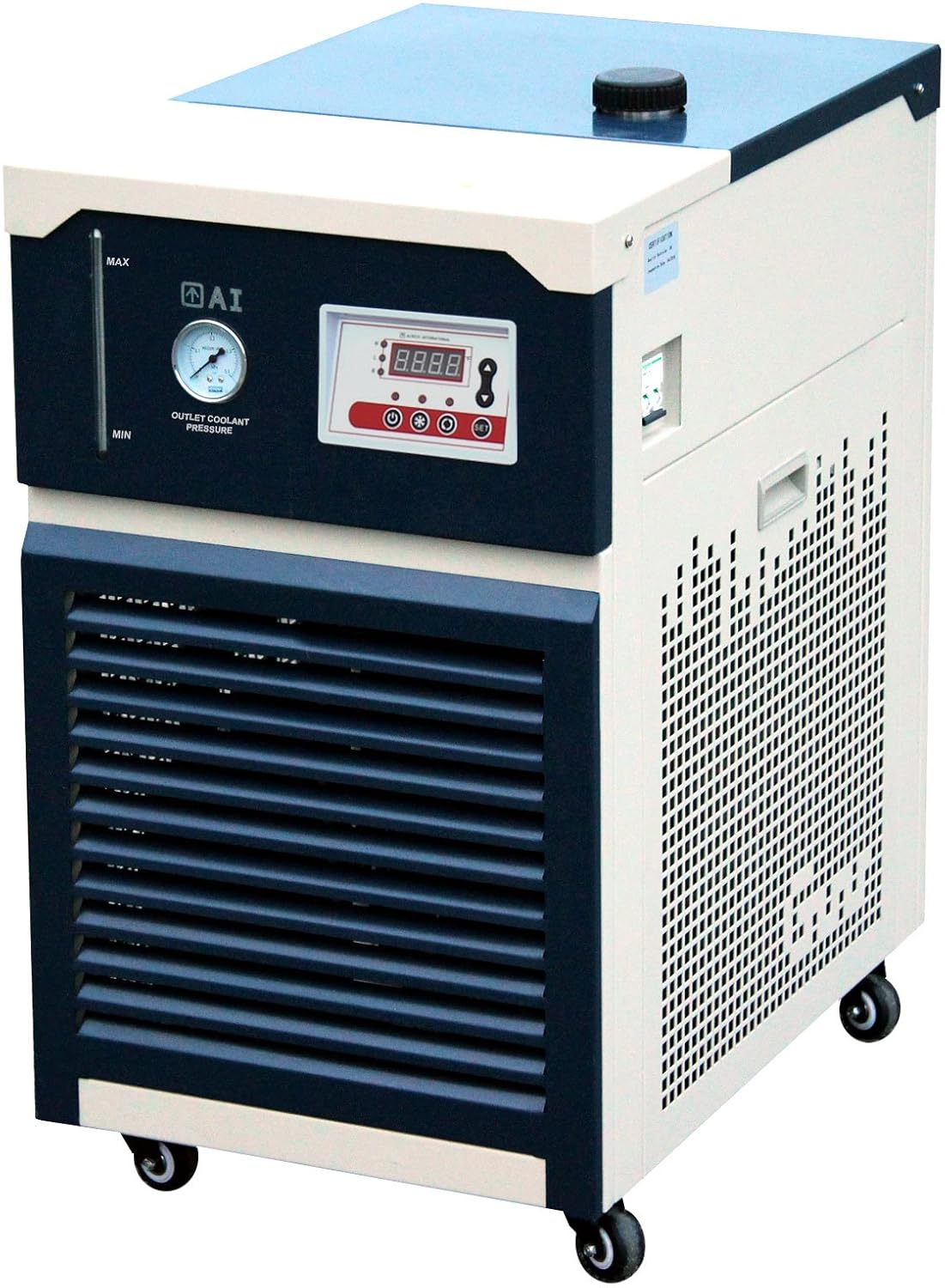

This listing is for a 220V air (No Suggestions) 2.6G/10L rotary Evaporator, a 220V air -30°c/-22°f 17L 20L/min recirculating chiller, a 220V ulna 1.6 cfm chemical-resistant diaphragm pump, and all necessary hoses and fittings, everything you need to get started. The newly re-designed air (No Suggestions) 2.Gallon/10L (evaporating flask capacity) series rotary evaporators come with all PTFE valves for solvent-resistant operations. We also lowered the Height of the Height of assembled unit, for easy installation and ease of use and storage. Also come with them are vertical glassware and Digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That's why our (No Suggestions) evaporators consistently deliver reliable and reproducible process results that are usually Reserved for more costly systems. Another important aspect of the (No Suggestions) is the Safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection. Features * solvent-resistant PTFE and Viton gaskets, ensuring long time operation. * specialized motor with extremely compact, intermeshed Worm and Worm gear provides precise driving for very quiet, vibration-free operation. * downward-condensing vacuum connection design ensures safe vacuum operation. * motorized water bath lifting for precise control. * easy, straight-forward visual operation with Digital speed and temperature display. * PID temperature Controller ensures accurate temperature control is maintained. Lifetime US-based parts and service support.
| Ai 2L Rotary Evaporator with -15ºC Chiller & 0.7 CFM Pump | Ai 5L Rotary Evaporator with 0.7 CFM Vacuum Pump and Dry Ice Condenser | Ai 5L Rotary Evaporator with 1.6 CFM Vacuum Pump and -30ºC Chiller | Ai 10L Rotary Evaporator with 1.6 CFM Vacuum Pump and -30ºC Chiller | Ai 20L Rotary Evaporator with 1.6 CFM Vacuum Pump and -30ºC Chiller | Ai 50L Rotary Evaporator with 6.1 CFM Vacuum Pump and -30ºC Chiller | |
|---|---|---|---|---|---|---|
| Electrical Requirements (Rotary Evaporator) | 110V 60Hz, 1-PH, 1075 watts, 9.8A | 220V 60Hz, 1-PH, 2300 watts, 10A | 220V 60Hz, 1-PH, 2300 watts, 10A | 220V 50/60Hz, 1-PH, 3800 watts, 17.3A | 220V 50/60Hz single phase, 4300 watts, 20A | 220V 50/60Hz 1-PH, 6400 watts, 29A |
| Electrical Requirements (Recirculating Chiller) | 110V 60Hz, 1-PH, 500 watts | N/A | 220V 60Hz 1-PH, 1200 watts | 220V 60Hz 1-PH, 1200 watts | 220V 60Hz 1-PH, 1990 watts, 9A | 220V 60Hz, 1-PH, 3960 watts, 18A |
| Electrical Requirements (Vacuum Pump) | 110V 60Hz, 1-PH, 100 watts | 110 Volts 60Hz, 1-PH, 180 watts | 220V 50/60Hz, 1-PH, 100 watts, 1.1A | 220V 50/60Hz, 1-PH, 100 watts, 1.1A | 220V 50/60Hz, 1-PH, 100 watts, 1.1A | 110v 60Hz, 1-PH |
| Evaporating Speed (Rotary Evaporator) | 20 ml per minute (water) | 0.5 gallons/hour (water), 1 gallon/hour (alcohol) | 0.5 gallons/hour (water), 1 gallon/hour (alcohol) | 0.75 gallons/hour (water), 1.5 gallons/hour (alcohol) | 1 gallon/hour (water), 2 gallons/hour (alcohol) | 2 gallons/hour (water), 4 gallons/hour (alcohol) |
| Rotoation Speed (Rotary Evaporator) | 10 to 180 RPM | 10 to 140 RPM | 10 to 140 RPM | 10 to 130 RPM | 10 to 130 RPM | 10 to 110 RPM |
| Recommended Coolant (Recirculating Chiller) | 50ºF or higher: Distilled water / 49ºF or colder: 50% ethylene glycol + 50% distilled wate | N/A | 50ºF or higher: Distilled water / 49ºF or colder: 50% ethylene glycol + 50% distilled water | 50ºF or higher: Distilled water / 49ºF or colder: 50% ethylene glycol + 50% distilled water | 50ºF or higher: Distilled water / 49ºF or colder: 50% ethylene glycol + 50% distilled wate | 50ºF or higher: Distilled water / 49ºF or colder: 50% ethylene glycol + 50% distilled wate |
| Reservoir Capacity (Recirculating Chiller) | 3L or 0.8 gallons | N/A | 10L or 2.6 gallons | 17L or 4.5 gallons | 30L or 8 gallons | 40L or 10.6 gallons |
| Chiller Cooling Capacity (if working environment is 25°C / 77°F) | @ 0°C/32°F: 400 W | N/A | @ 32°F/0°C: 1250W @ 14°F/-10°C: 800W @ -4°F/-20°C: 300W @ -22°F/-30°C: 150W | @ 32°F/0°C: 1750W @ 14°F/-10°C: 1100W @ -4°F/-20°C: 700W @ -22°F/-30°C: 300W | @ 32°F/0°C: 2800W @ 14°F/-10°C: 1800W @ -4°F/-20°C: 1000W @ -22°F/-30°C: 500W | @ 32°F/0°C: 5000W @ 14°F/-10°C: 3000W @ -4°F/-20°C: 1800W @ -13°F/-25°C: 1000W |
| Ultimate Pressure (Vacuum Pump) | 7.5 torr / 10 mbar | 735 torr | 7.5 torr / 10 mbar | 7.5 torr / 10 mbar | 7.5 torr / 10 mbar | 6 torr / 8 mbar |
| Pumping Speed (Vacuum Pump) | 1.6 CFM | 0.7 CFM | 1.6 CFM | 1.6 CFM | 1.6 CFM | 6.1 CFM |
